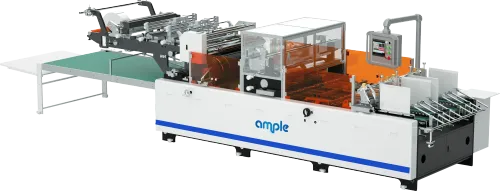

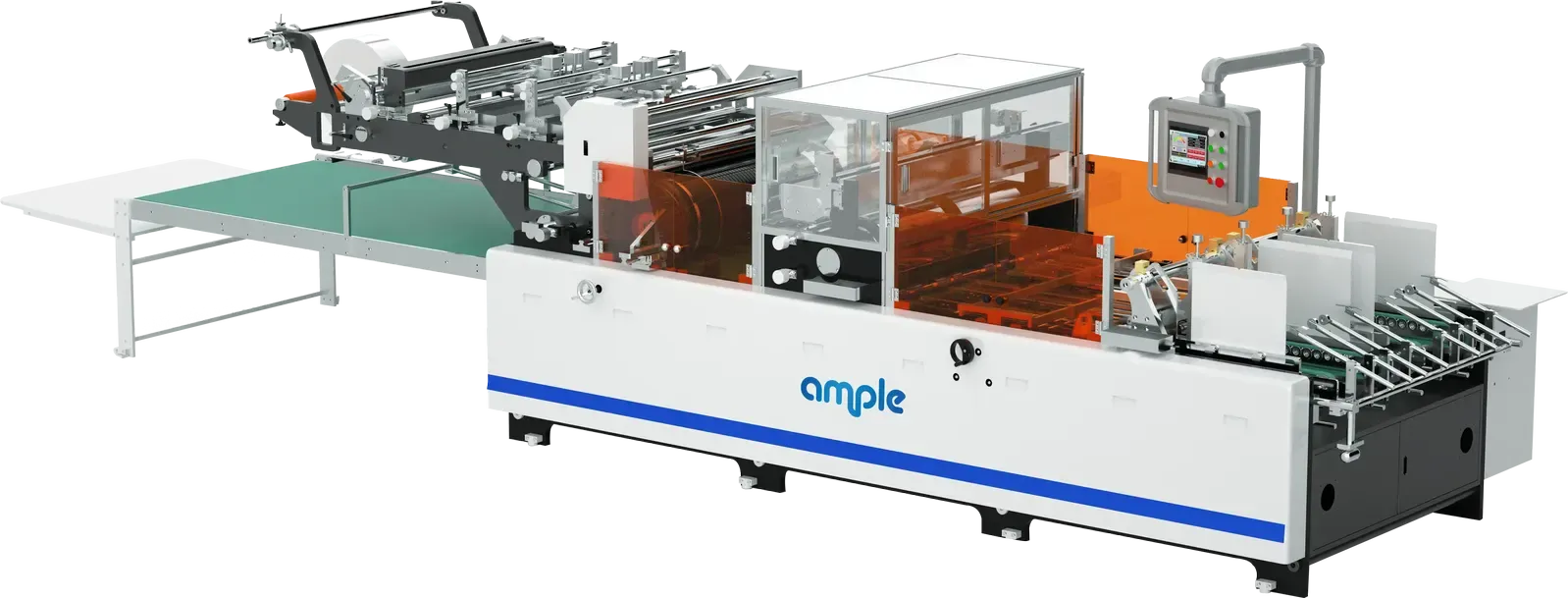

Full Servo High Speed Window Patching Machine

Full Servo High Speed Window Patching Machine

• All Type of Film such as PVC/PET/OPP can be used
• The Machine is equipped with 9 servo motors
• Capable of making creasing, V-notch shape punch (using cutting moulds) and embossing
• Film Thickness ranging from -0.03 – 0.25mm
• Peculiar gluing assembly avoids glue on belt in case of on paper
• The Speed range from from 3000-24000 Sheet an Hour
• Model with dual lane also available
• Paper Thickness Corrugated board :</-5mm Cardboard 200-2000g/m²
• Can use preprinted film (optional feature)

FMW-950HS

• Paper Size: W970xL720mm - W150xL150mm
• Film Size: W650xL450mm - W40xL55mm
• Paper Thickness: Corrugated board: <5mm - Cardboard: 200-1000g/m²
• Film Thickness: 0.03-0.25mm
• Positioning Accuracy: ±0.75mm
• Mechanical Speed: 3000-24000 sheet/hour
• V-Notch Speed: 10000 sheet/hr.
• Power Voltage: 380v
• Machine Power: 21Kw
• Machine Weight: 3000 kg
• Dimension: L6000xW1650xH800mm
• Available in other sizes: FMW-800HS, FMW-1100HS

FMX-850HS

• Paper Size: W850xL850mm - W150xL150mm
• Film Size: W450xL500mm - W30xL55mm
• Paper Thickness: Corrugated board: 1-5mm - Cardboard: 200-1000g/m²
• Film Thickness: 0.03-0.25mm
• Positioning Accuracy: ±0.75mm
• Mechanical Speed: 3000-36000 sheet/hr.
• V-Notch Speed: 10000sh/hr.
• Power Voltage: 380v/50hz
• Machine Power: 18.5kw
• Machine Weight: 2800kg
• Dimension: L6500xW1600xH1800mm
• Available in other sizes: FMX-1150HS, FMX-1300HS
