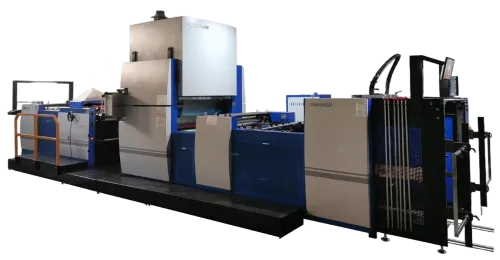

Heavy Duty Automatic Film Laminating Machine

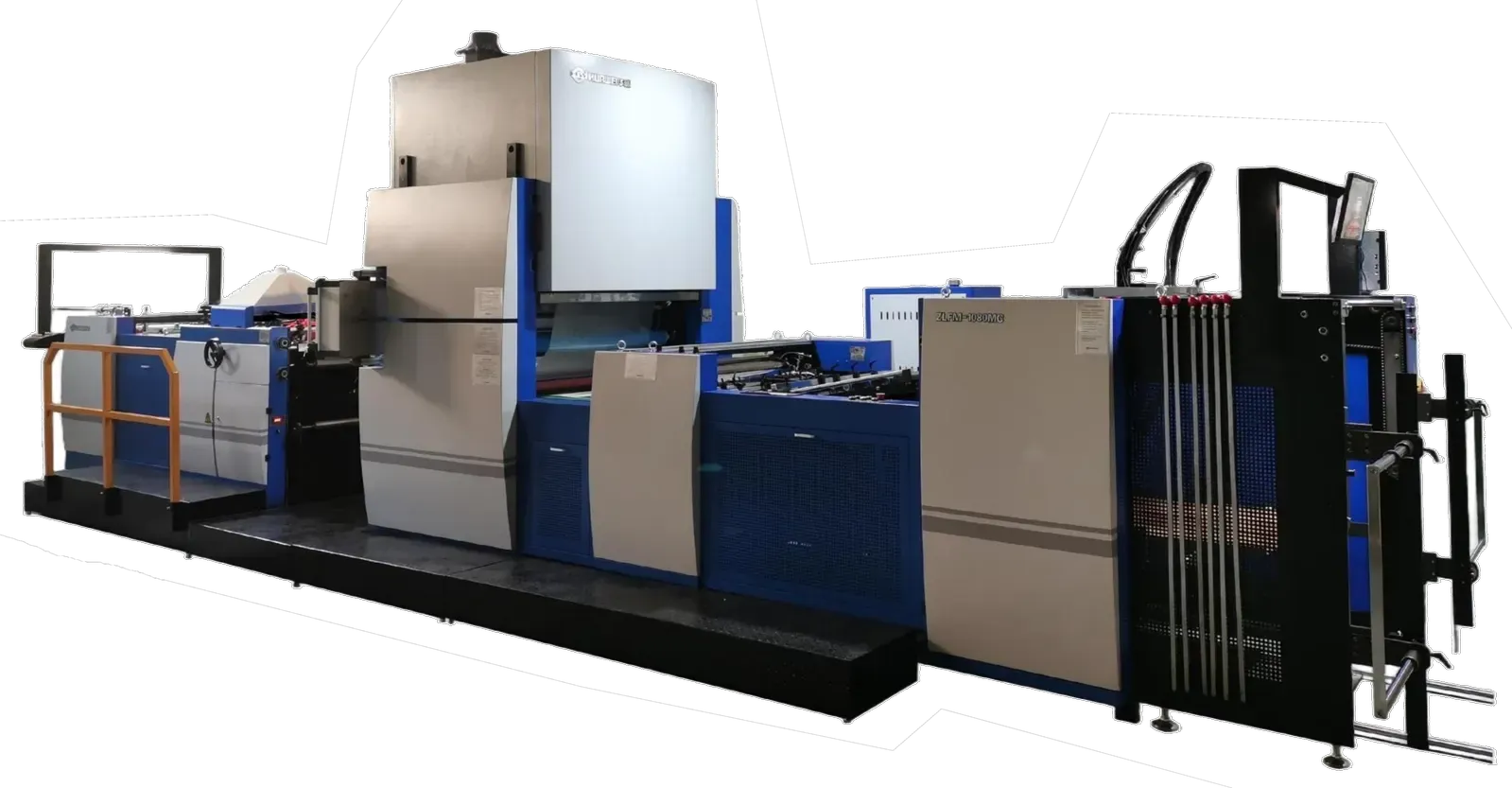

HFM-1080MCR

• High Speed Automatic Lamination Machine with Hot Knife
• Auto Correction in hot Knife cutting using double sensor
• Cast Iron Body
• Max. sheet size W1080xL1200mm
• Min. sheet size W320xL350mm (450x350 with out correction)
• Sheet thickness range 80-600g/m²
• Feeder pile height 1300mm
• Stacker pile height 1300mm
• Max working speed of 100m/min
• Installed power 86kW (Running Power 40kw)
• Machine dimension L10306xW2900xH3080mm
• Total weight 12000kgs
• Corona Treater (Optional)
• Delam Unit (Optional)
