Rigid Box Accessory Machines

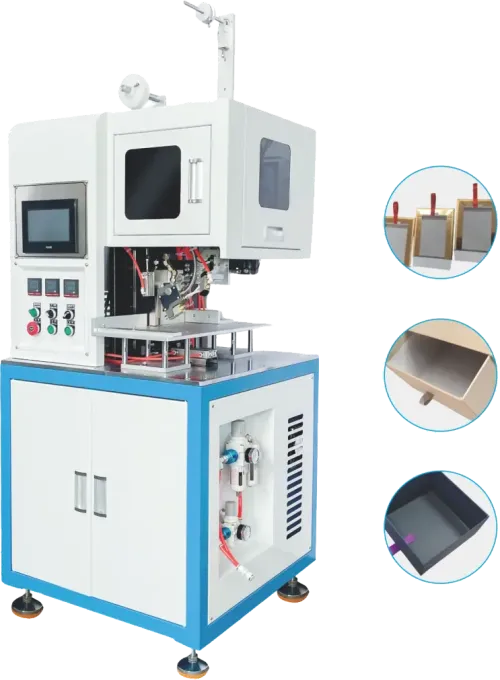

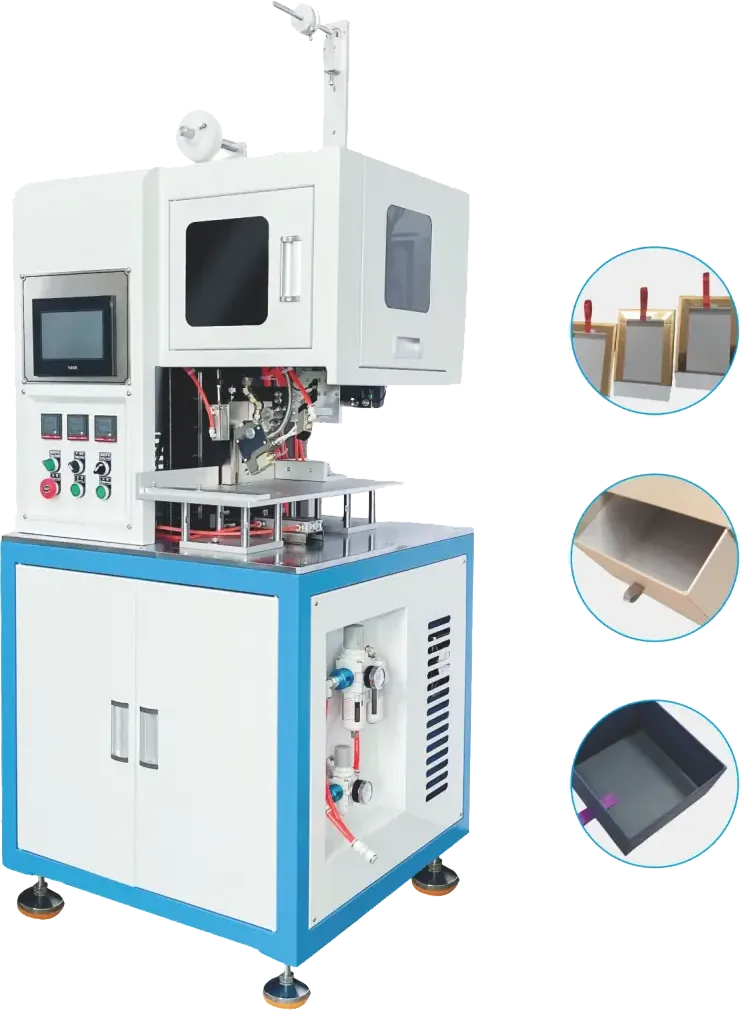

Ribbon Pasting Machine

• The equipment automatically cuts the Ribbon, applies the glue, attaches or threads the Ribbon, and kicks the box.
• PLC Based precision alignment with 0.05MM accuracy at 20-22pcs /min.
• Digitally controlled Ribbon length from 10-60mm with width ranging from 10-20mm.
• Optional system to add trademarks or logos.
• High speed, high accuracy spray gun with high speed electromagnetic valve for low consumption of glue.

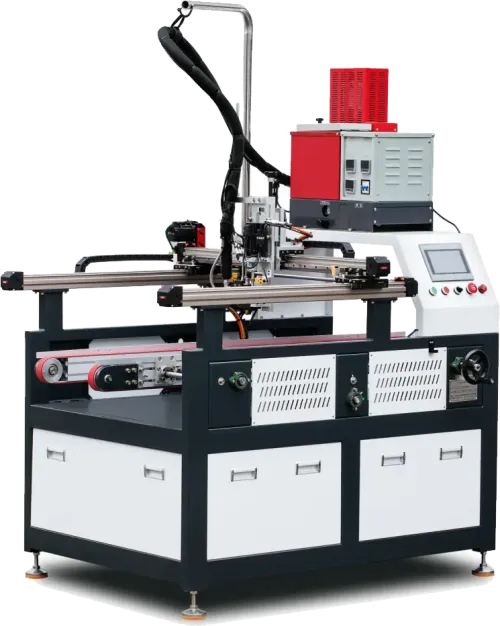

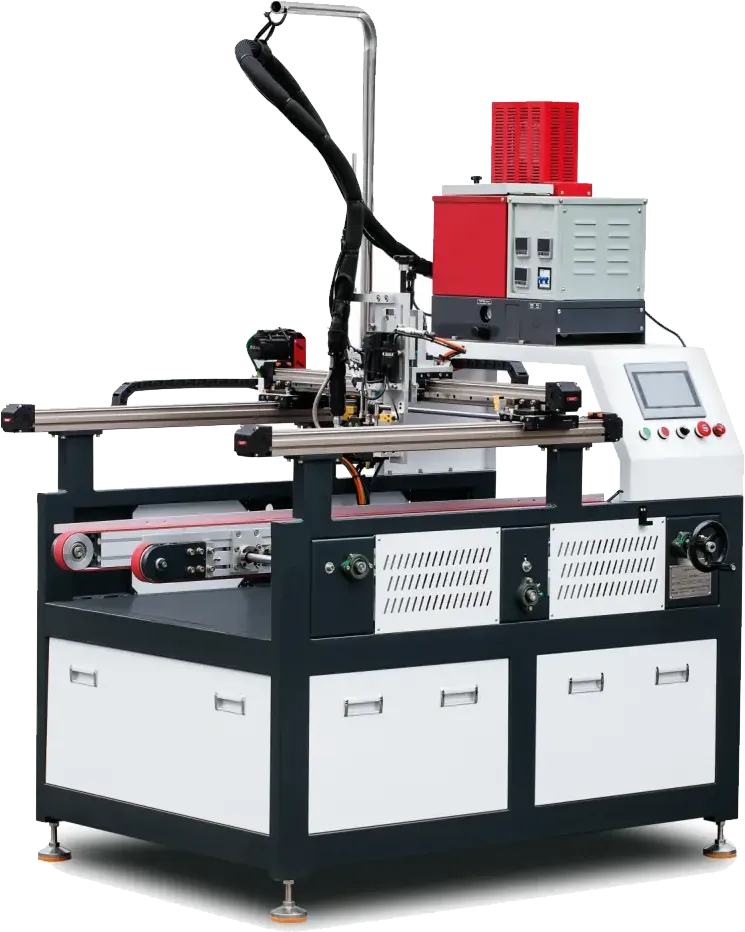

Glue Spraying Machine

• Automatic feeding, dispensing and discharging with one high performance control system
• Speed of 25-30pcs / min with a positioning accuracy of 0.1MM
• Max Box size 450*500MM and a height range of 10-120MM
• Servo based system for high stability and high accuracy
• Fast speed, strip spraying glue dispensing system for strong bonding and no leakage.

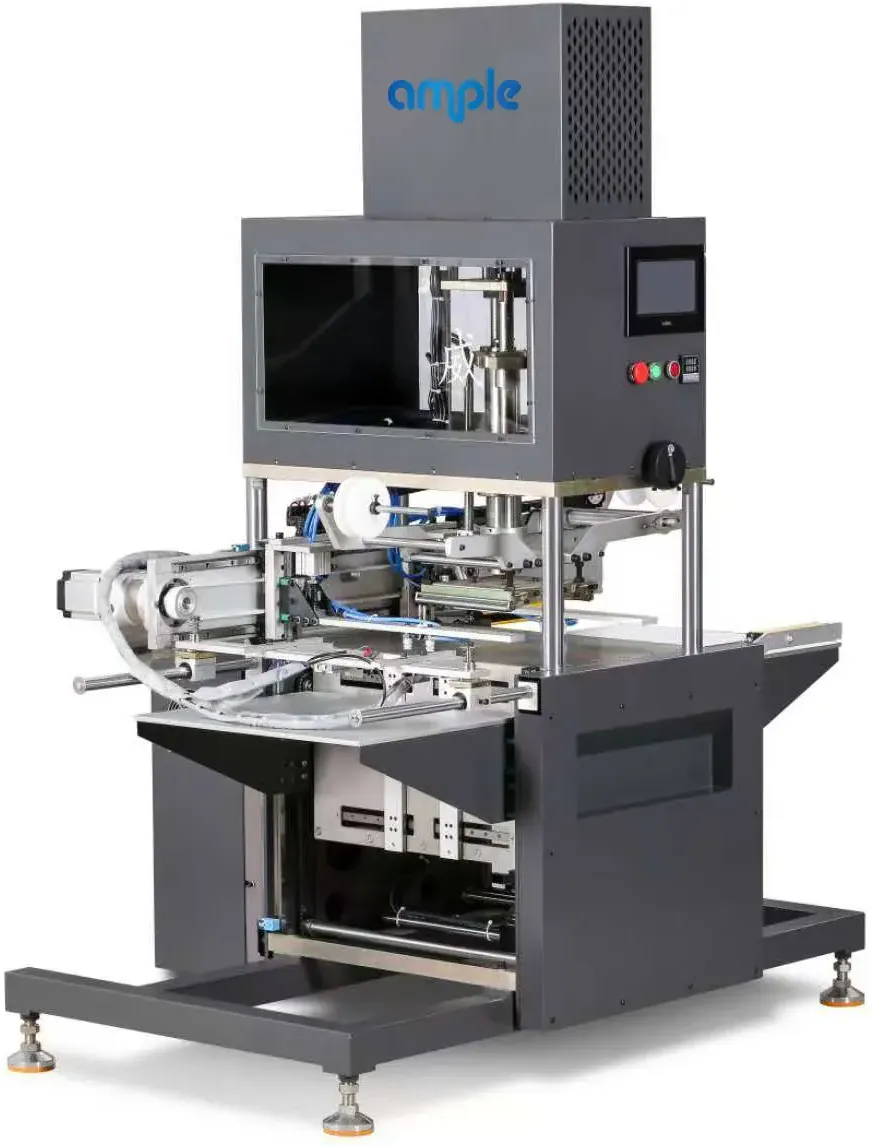

Automatic Hot Stamping Machine

• This machine is especially used for paper sheet, PVC, PU, etc automatic hot foiling in printing & packaging industry.
• Automatic paper feeding and reciving are all controlled by servo motor with high precision, accuracy within 0.1mm
• Foiling main shaft is driven by 1500W servo motor achieving 0-1.5 tons pressure adjustment, Foiling plate uses high precision temperature controller, thermocouple, and 400W heating plate, temperature can be controlled within 2-3 degrees.
• Foiling paper moving is controlled by stepping motor with accuracy of 0.2mm.
• Whole machine is operated by PLC+ Touch panel+high precision servo motor+air cylinder, with space saving design. Especially suitable for jewelry box, wallet & watch box, small hardcover, red pocket, demonstration box PVC etc.
