Automatic High-Speed Flute Laminator

HWL 1450 MAX - High Speed Automatic 3-Ply Flute Laminator Machine

• Servo Controlled (Yaskawa) for Higher Precision
• Multiple Sensors to monitor top sheets movement
• Sheet size from 500400 to 14501450mm
• Top Sheet of 105-600gsm
• Accuracy range of ±1mm
• Power - 380 V / 3φ / 40kw
• All Flute types A/B/C/E/F/G can be laminated
• Reduced make ready time
• Silicon coated Gluing Rollers
• Max Laminating Speed: 190 m/min, or upto 15000 sh/hr.
• Machine Dimesion 14500x2600x2500
• Additional sizes 1700x1650, 2100x1650

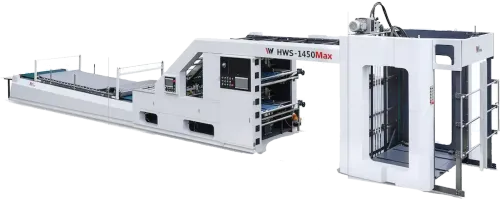

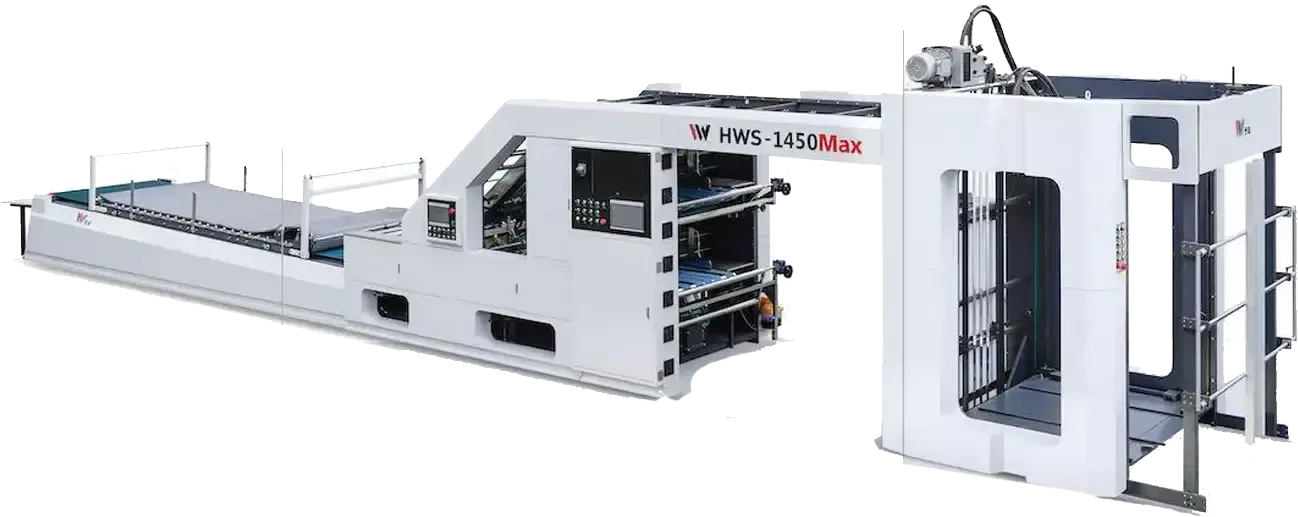

HWS 1450 MAX - High Speed Automatic 5-Ply Flute Laminator Machine

• Max Sheet Size - 1450x1450 mm
• Min Sheet size- 500x400 mm
• Feeder of Top Sheet 120-600gsm
• Accuracy range - ±1.5mm
• Power - 380 V / 3φ / 48kw
• Height of Top Paper - 1800 mm
• Feeder of Bottom Paper/Ply - 400mm
• All Flute types A/B/C/E/F can be laminated
• Laminating Speed : 120 m/min or upto 10000 sh/hr. (5ply)
• Laminating Speed : 150 m/min or upto 15000 sh/hr. (3ply)
• Machine Dimesion L15500xW2600xH2900
• Additional Sizes - 1700x1650

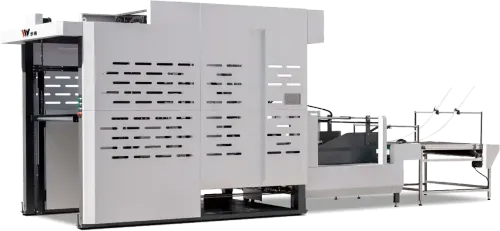

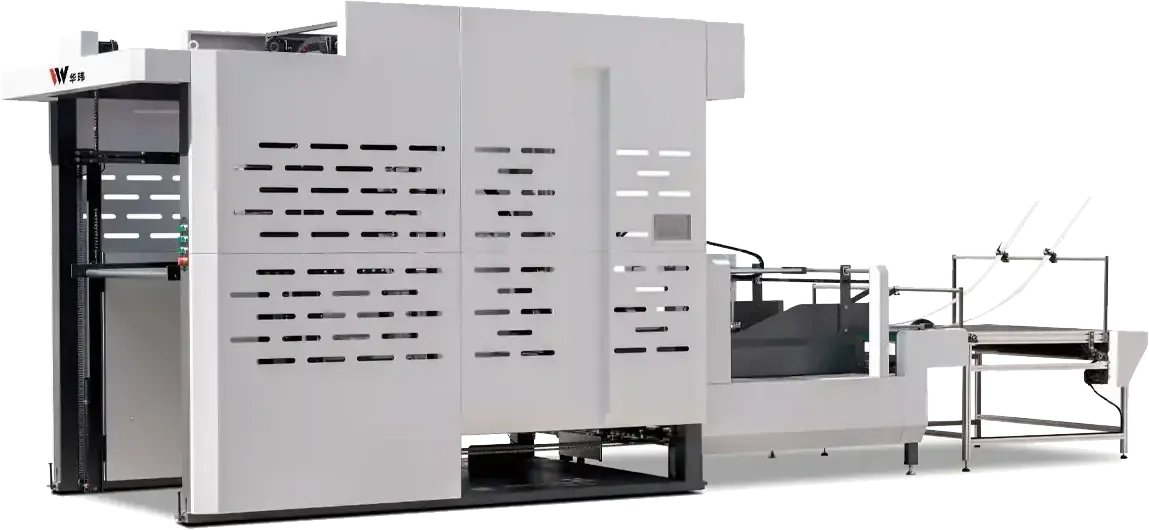

HWFZ-1450 - Flip Flop Stacker

• Automatic Flip Flop is a forward-looking technological innovation.
• Automatically collects paper and stacks the front and back sides paper in machine.
• Power - 380 V / 3φ / 8kw
• Weight - 2800KG
• Dimension - L8410xW2570xH2875
• Additional Sizes : 1650 / 1700 / 1900
