Automatic Flute Laminator

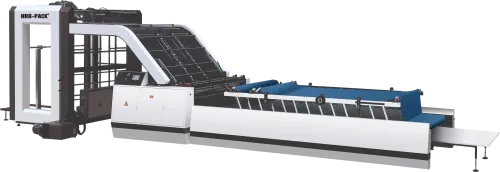

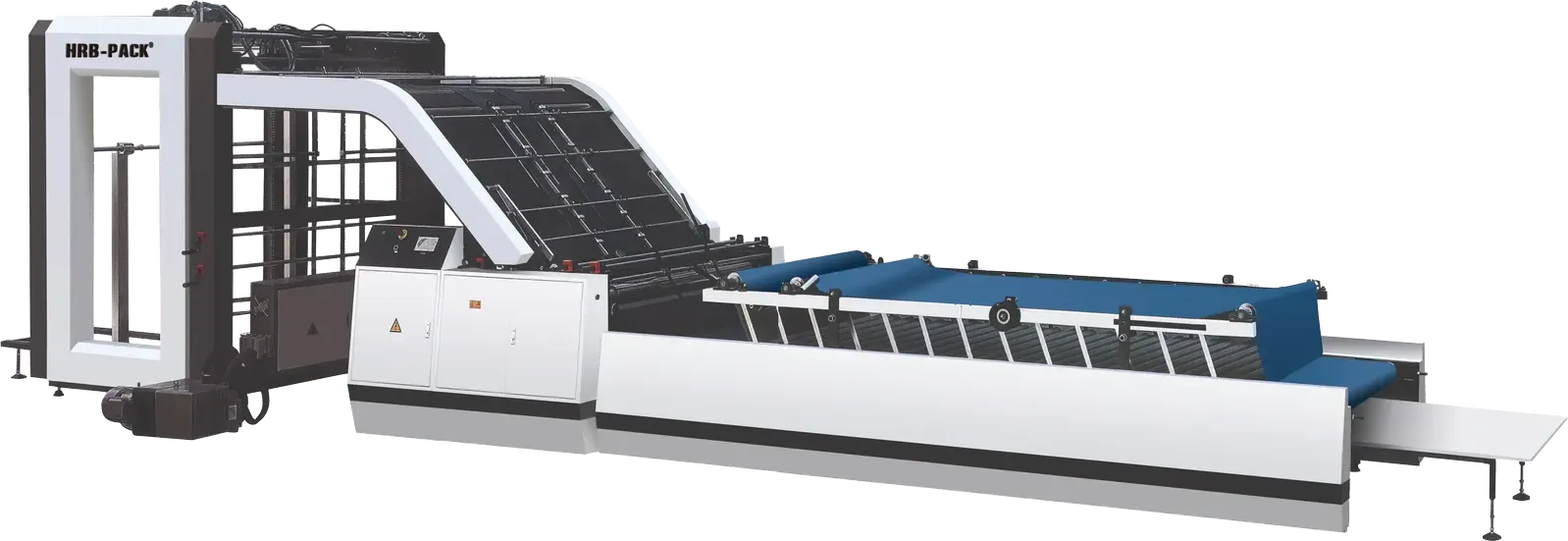

HRB 1300A - Automatic 3-ply Flute Laminator

• Adjustable suction air together for accurate control of top sheet with bottom paper
• Suction feeding bottom device capable of supporting 2 & 4 ply
• Automatic glue circulating system and anilox roller for even glue application
• Machines uses Touch-Screen / PLC / Servo Motor control system, which can automatically display failure alarms
• Accuracy ranges from 1mm to 2mm depending on model
• Speed range up to 7,000 sh / hr.
• Additional sizes 1600x1250
• B Type model also available
• Option of manual feeding available

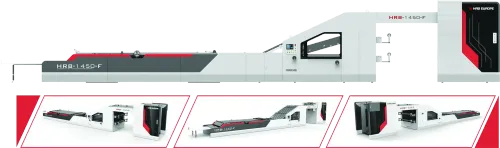

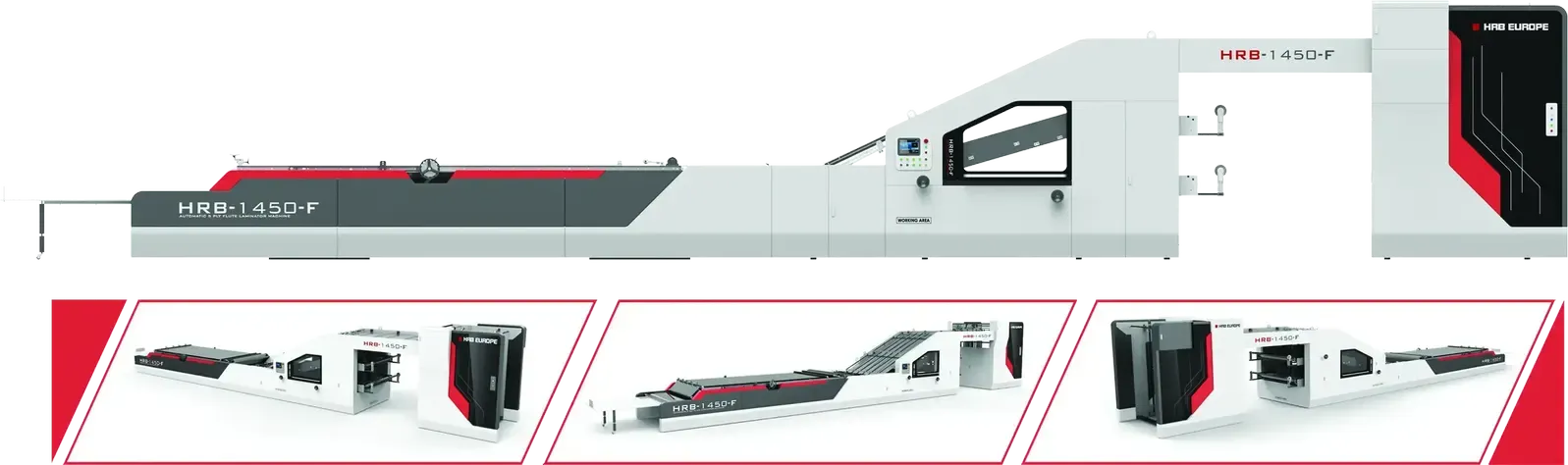

HRB 1450F - Fully Automatic 5-ply Flute Laminator

• 3 Feeding System
• Face paper handling range of 200-500 GSM
• Both bottom paper feeder and vacuum suction feeding belt
• Anilox Steel Roller for glue application
• Frontlay adjustment range within ±1MM
• Photoelectric detector for upper & bottom paper accuracy
• Double Pre-Pressing roller in laminating unit
• Bottom Paper handling range - A, B, C, E, F Flute
• Speed upto 100 Mtr / Min
• Speed range upto 6,000 sh / hr
• Additional sizes 1300x1200 / 1600x1200
• Optional Automatic Stacker
