Die Cutting Machine for Corrugated

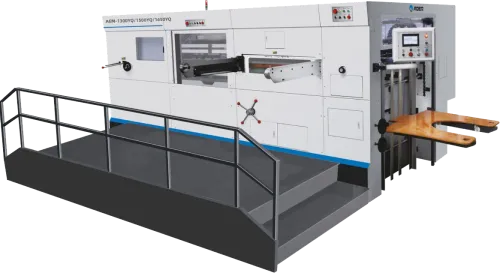

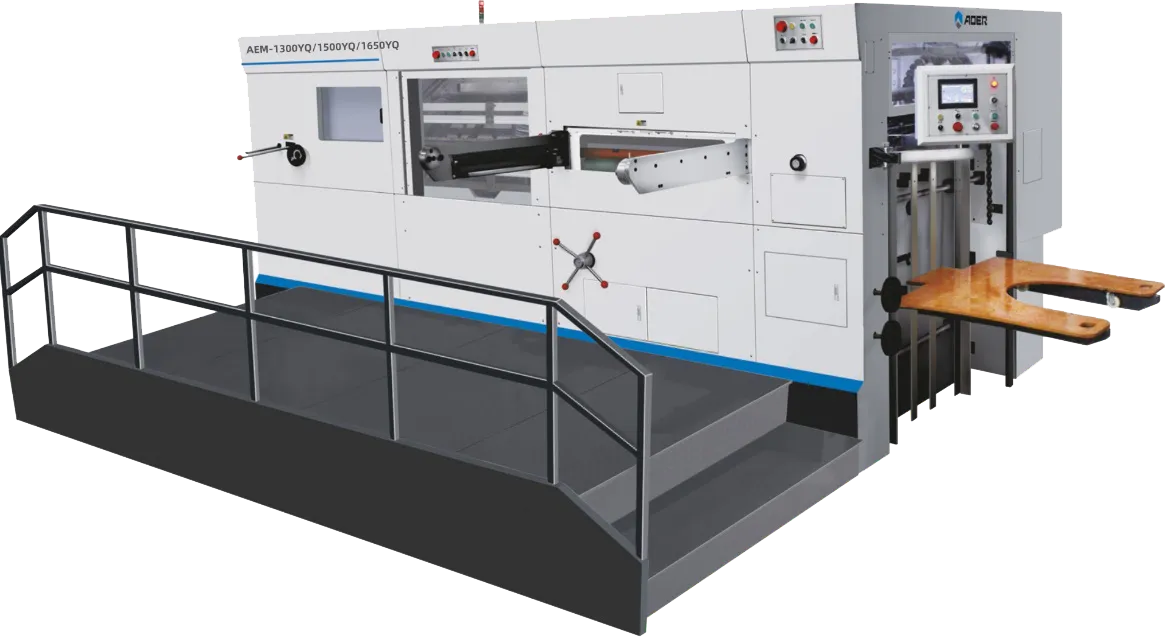

AEM-1300Y - Manual Feeding

• Max paper size: 1320x980 mm
• Min paper size: 470x370 mm
• Max Speed – 5000 S/H
• Cutting Accuracy: ≤±0.2 mm
• Max pressure: 250 N/cm²
• Total power: 17.8kw
• Machine Weight – 15 T
• Machine Dimension: L3300(+2800)xW2350(+1900)xH2250 mm
• Available in other size – 1500Y / 1650Y

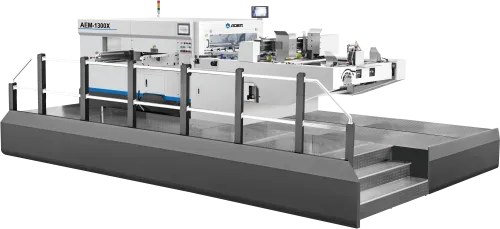

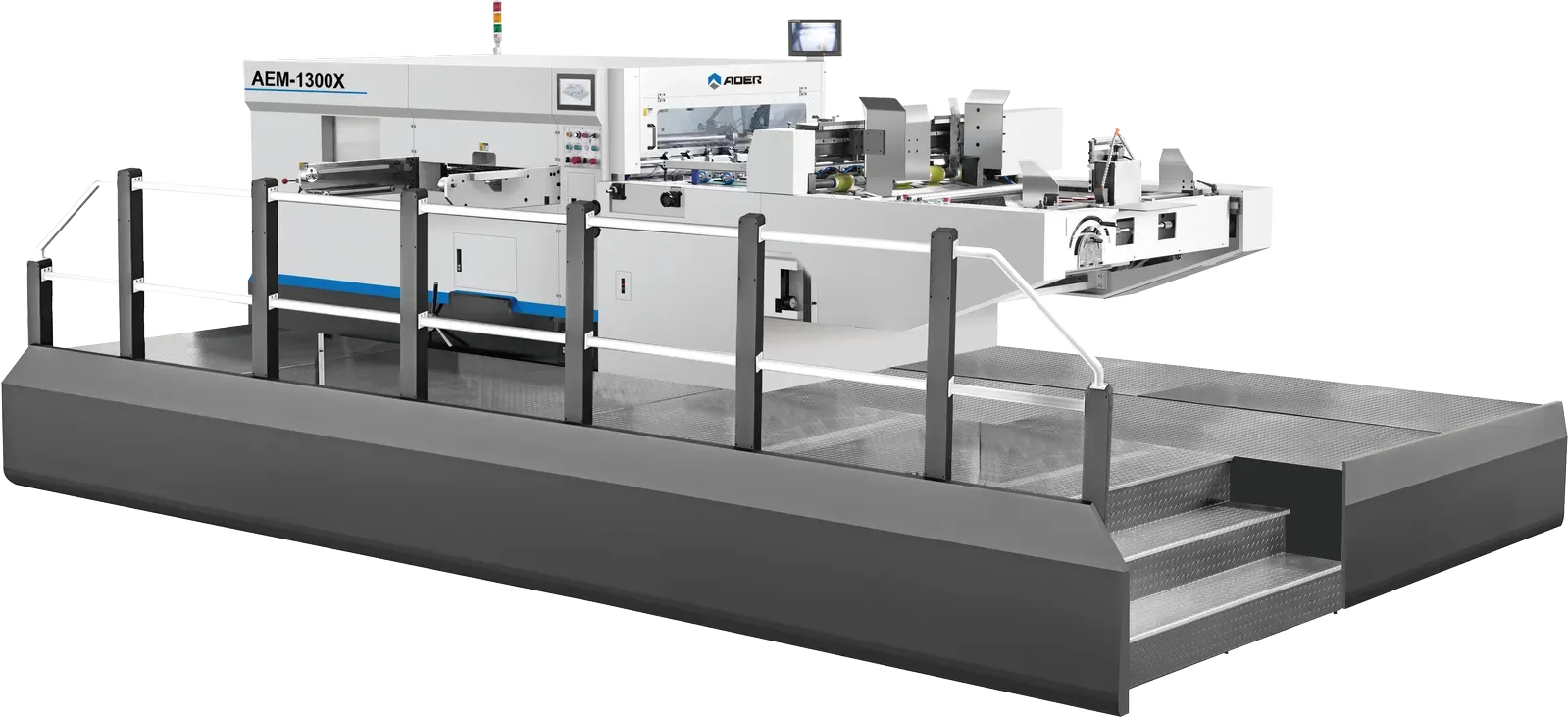

AEM-1300X - Bottom Feeding

• Max paper size: 1320x980 mm
• Min paper size: 470x370 mm
• Max Speed – 5000 S/H
• Cutting Accuracy: ≤±0.2 mm
• Max pressure: 250 N/cm²
• Total power: 17.8kw
• Machine Weight – 19 T
• Machine Dimension: L6000(+1800)×W2350(+1900)×H2350mm
• Available in other sizes -1500X/1650X
• Also available with Lead Edge feeding system
