2-Ply Line Equipment

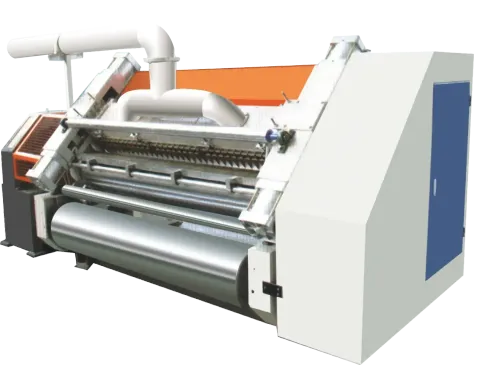

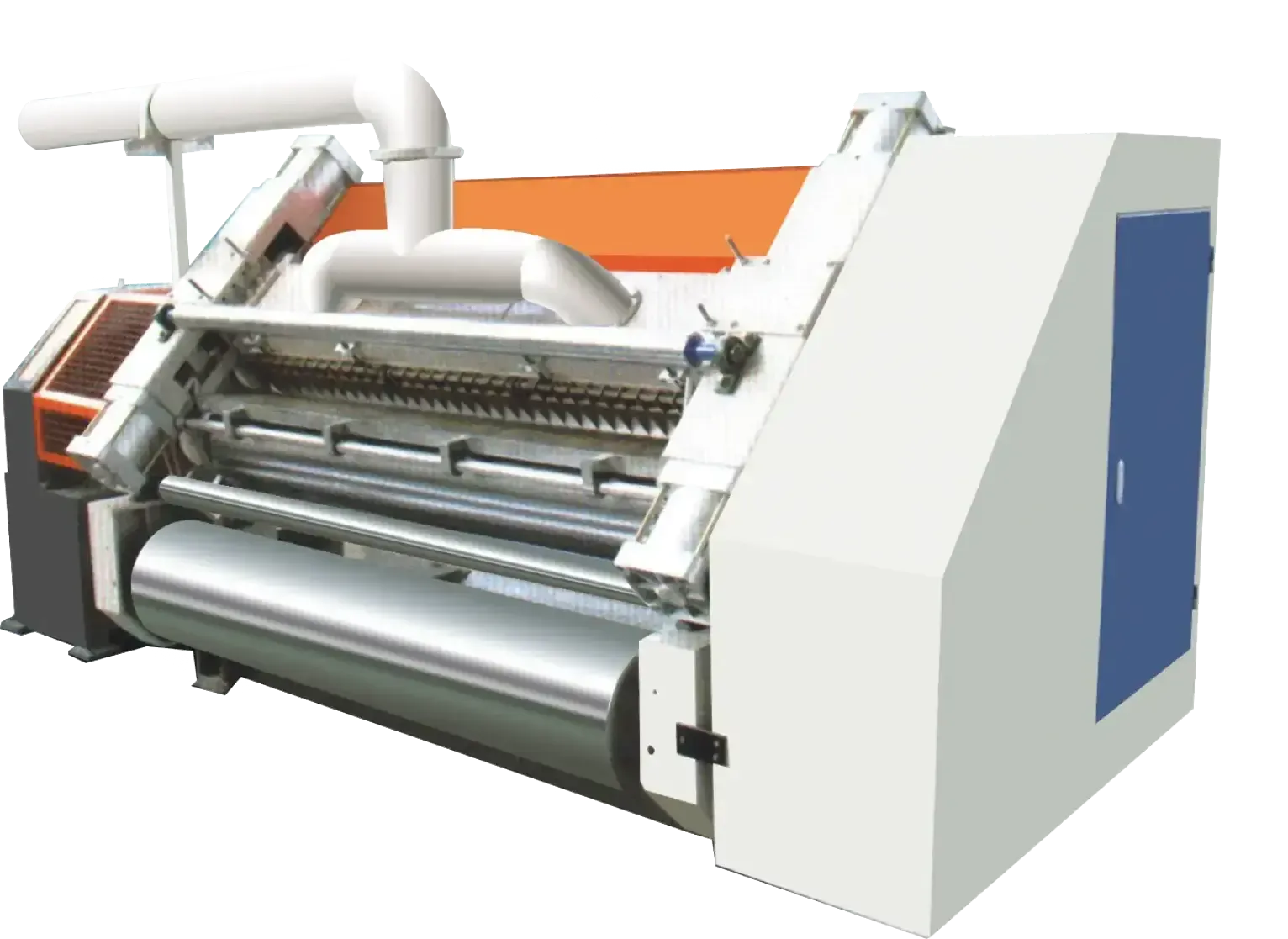

Fingerless Adsorption Single Facer

• Options for Electric, Steam and Thermic Fluid heating available
• 280mm cylinder circumference
• Design speed of up to 100 m/min
• Effective roll width of 1200 mm to 2000 mm
• Flute profile of A, B, C, E, F, G & N
• Corrugation roll made of special steel alloy of CrMo, 48 Option of Tungsten Carbide coating available
• Multiple design options for flute size & shape
• Pneumatic control for lifting and lowering of upper roll, press roll & gluing roll
• Paper guide with vacuum suction for perfect flute shape at high speeds
• Auto circulating glue feeding system
• Options of 320 mm cylinder & cassette type system available

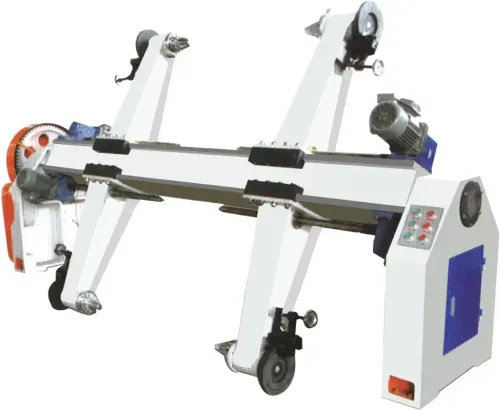

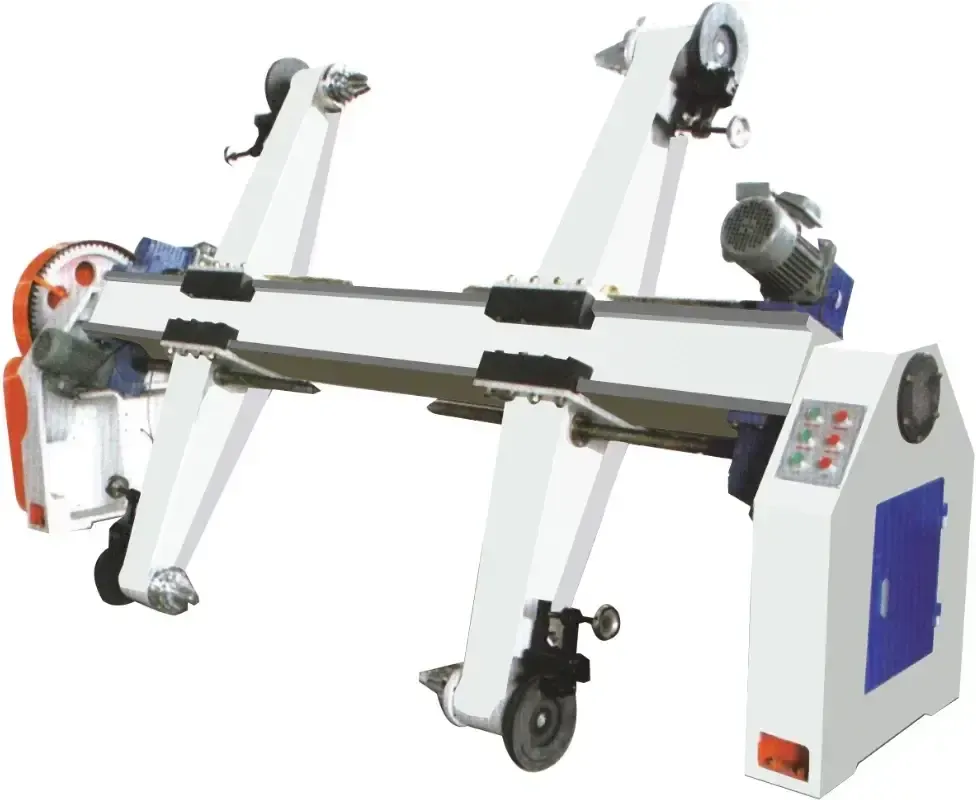

Shaftless Paper Roll Stand

• Maximum paper roll diameter of 1400 mm
• Effective roll width of 1200 mm to 2000 mm
• Shaftless
• Motorised operations for lifting and lowering, clamping and releasing of paper roll
• Independent pneumatic control of web tension for each roll
• Option of heavy duty Hydraulic Roll Stand available

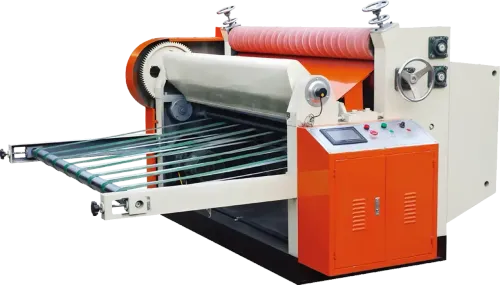

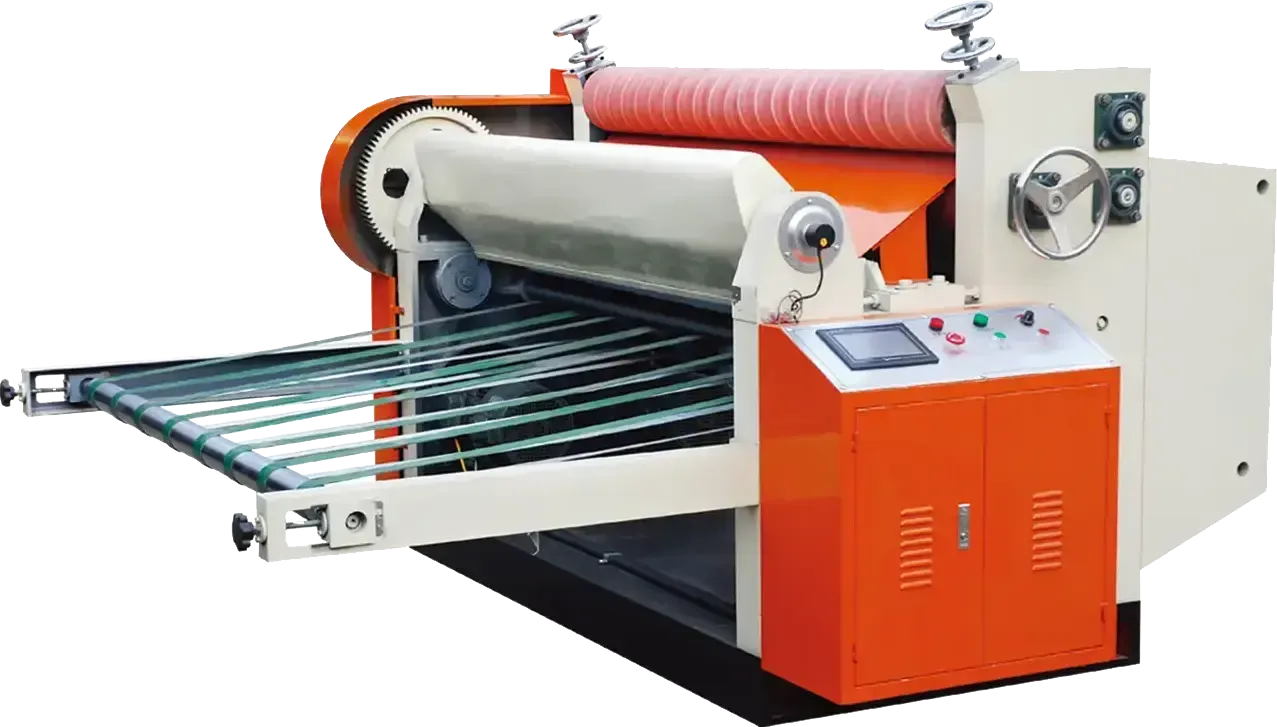

Computer Sheet Cutter

• Max working width of 1800mm
• Mechanical speed of 80m/min
• Minimum cut length of 300mm
• Maximum cutting length of 9000mm
• Cutting accuracy of +- 1.5mm
• Full AC Synchronous Servo control
• Main Drive motor of 3kw

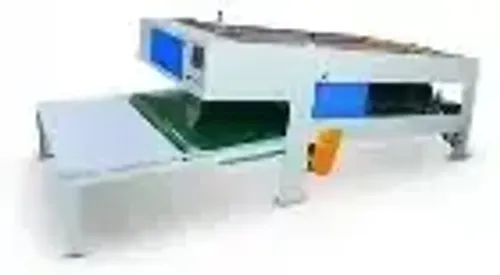

Optional Stacker
